SEPA Small Oil Separator Details

The SEPA small Oil Separator unit dimensions are shown below.



2010 SEPA. All rights reserved. Terms and Conditions

SEPA Oil Separator

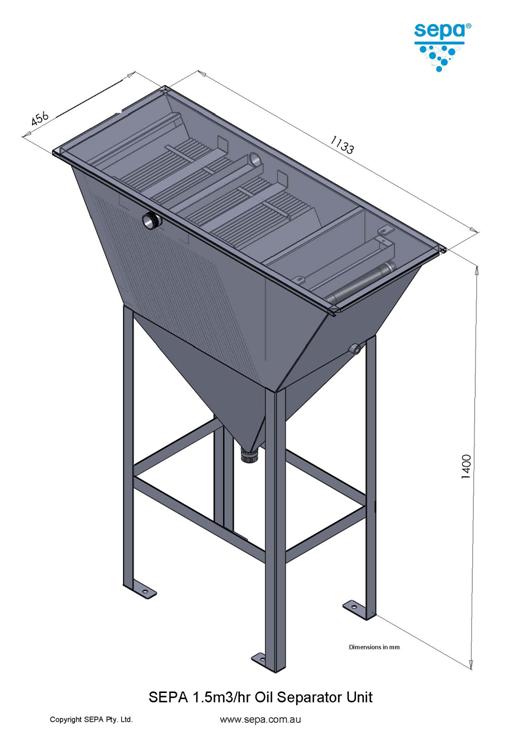

1.5m3/hr unit

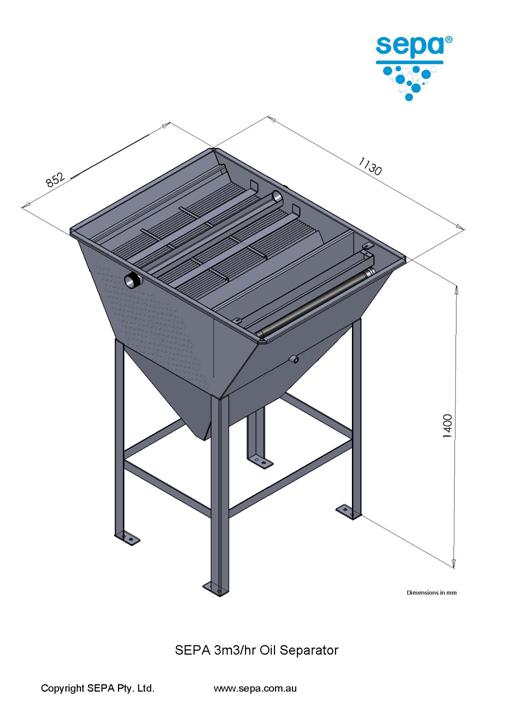

3m3/hr unit

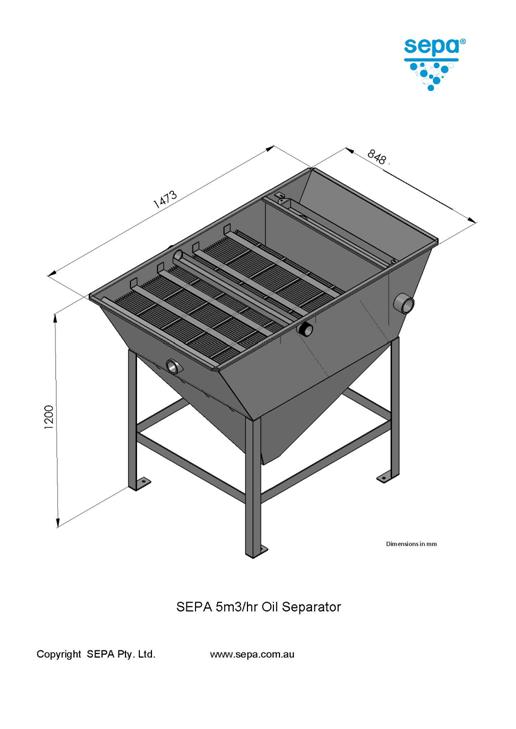

5m3/hr unit

Water Inlet



Water Outlet



Oil Weir



Sludge outlet

25 mm BSP socket



50mm BSP





40mm



40mm ball valve

32 mm BSP socket



50mm BSP





50mm



40mm ball valve

50mm





50mm





50mm



40mm ball valve
