The SEPA® small Oil Separator units are of three sizes.


· 1.5m3/hr flowrate

· 3m3/hr flowrate

· 5m3/hr flowrate


Click link for dimension details.


The SEPA oil separators have a dual plate pack, the first for optimum removal of oil droplets and solids followed by final polishing in the second pack.


The separator is a patented design.


A fully adjustable full width Water weir (Registered Design) is provided giving a side outlet, allowing a higher drainage point then proceeding models.


A particular feature of the overall design is that if the separator is drained, a water trap is created in the outlet section, which prevents oil carry through to the Water Outlet weir on re-filling.


SEPA Oil Separators are authorised pre-treatment products by Sydney Water and other Australian water authorities.


SEPA oil separators can be obtained as stand alone unit or as a package with an ASM diaphragm pump and  float switch.  Optional items include lid, high level alarm and control panel.



SEPA® Small Oil Separator


© 2010 SEPA. All rights reserved. Terms and Conditions

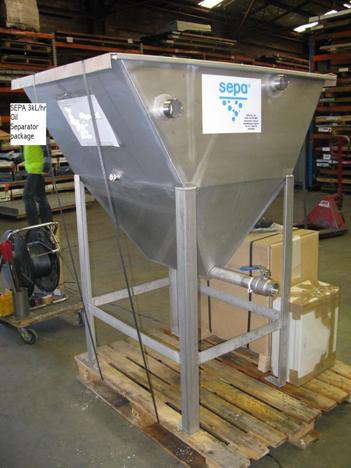

SEPA®  3m3/hr Oil Separator with pump, control panel and float switch

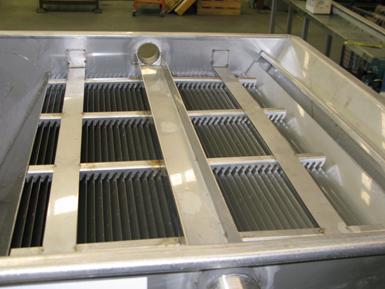

SEPA® Oil Separator stainless steel plate pack showing uniformity of construction

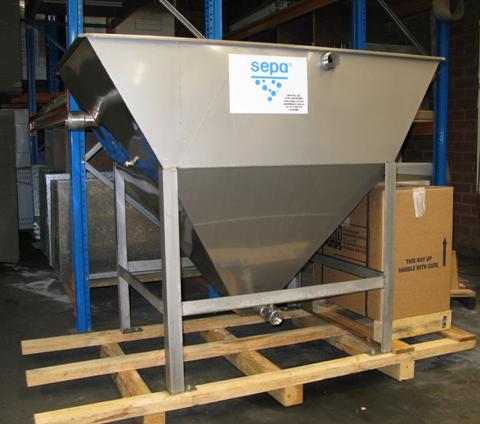

SEPA® 5m3/hr Oil Separator with pump

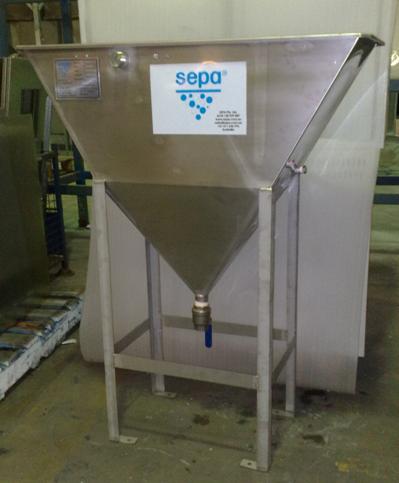

SEPA® 1.5m3/hr Oil Separator
