SEPA® Boat Shaped Grease Arrestor Dimensions and Sizes: |
|
SEPA® Grease Arrestor
|
|
© 2010 SEPA. All rights reserved. Terms and Conditions |
|
SEPA Boat Shaped Grease Arrestors are authorised pre-treatment products by Sydney Water.
These units are manufactured in Sydney, for use in Australia and overseas.
These are above-ground units. Optional item includes a platform.
|
|

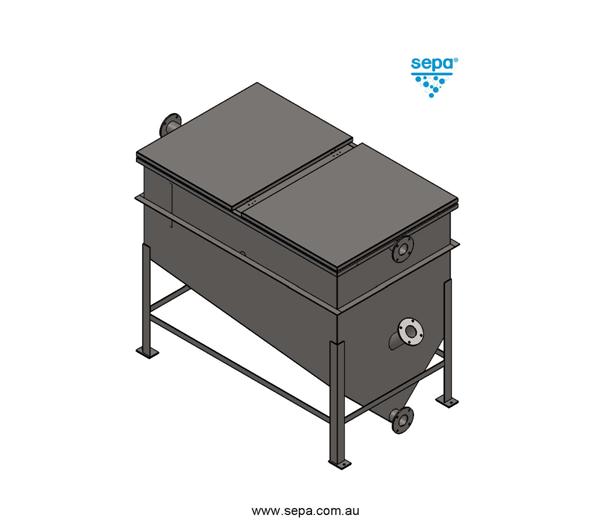

SEPA® Boat Shaped 2000L Grease Arrestor (Model: BS20) |
|
SEPA Grease Arrestor |
Capacity |
Flow rate |
Length |
Width |
Height |
Weight |
|
|
Model No. |
(Litres) |
kL/hr |
mm |
mm |
mm |
Empty (kg) |
Full (kg) |
|
BS 10 |
1000 |
1.0 |
1600 |
866 |
1604 |
250 |
1250 |
|
BS 15 |
1500 |
1.5 |
1536 |
1200 |
1806 |
280 |
1800 |
|
BS 20 |
2000 |
2.0 |
2050 |
1200 |
1806 |
325 |
2400 |
|
BS 30 |
3000 |
3.0 |
2400 |
1200 |
2067 |
370 |
3379 |
|
BS 40 |
4000 |
4.0 |
2350 |
1500 |
2241 |
430 |
4430 |
|
BS 50 |
5000 |
5.0 |
2945 |
1500 |
2299 |
520 |
5520 |
